About this item
Product Highlights
DETAILS
Features:
- Sound System Amp Receiver for Audio Control
- Built-in Bluetooth Receiver for Wireless Streaming
- Water Resistant Marine Grade Construction
- Universal Standard Size for Dashboard/Console Panel Installation
- Wired USB Flash Drive Reader
- MP3 Digital Audio File Playback
- Connect & Stream Audio from External Devices
- Aux RCA (L/R) Input Connectors
- Aux RCA (L/R) Audio Output Connectors

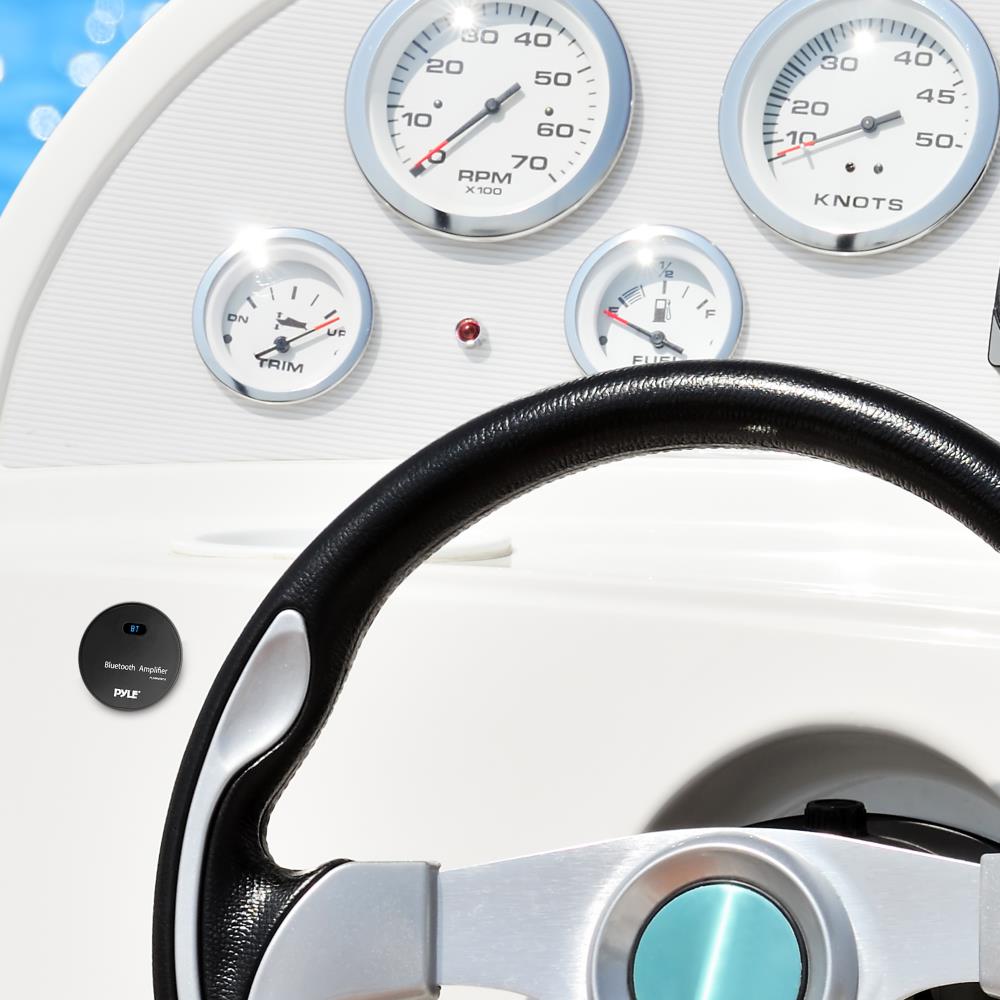

- Used for Boat, Automobile, Off-Road, Mobile and Marine Watercraft Vehicles
Bluetooth Connectivity:
- Built-in Bluetooth for Wireless Audio Ability
- Works with All of Your Favorite Devices
- (iPhone, Android, Smartphone, iPad, Tablet, etc.)
- Bluetooth Version: 2.1
- Bluetooth Wireless Range: 30’+ ft.
- Bluetooth Network Password: ‘0000’ (4 zeroes)
What’s in the Box:

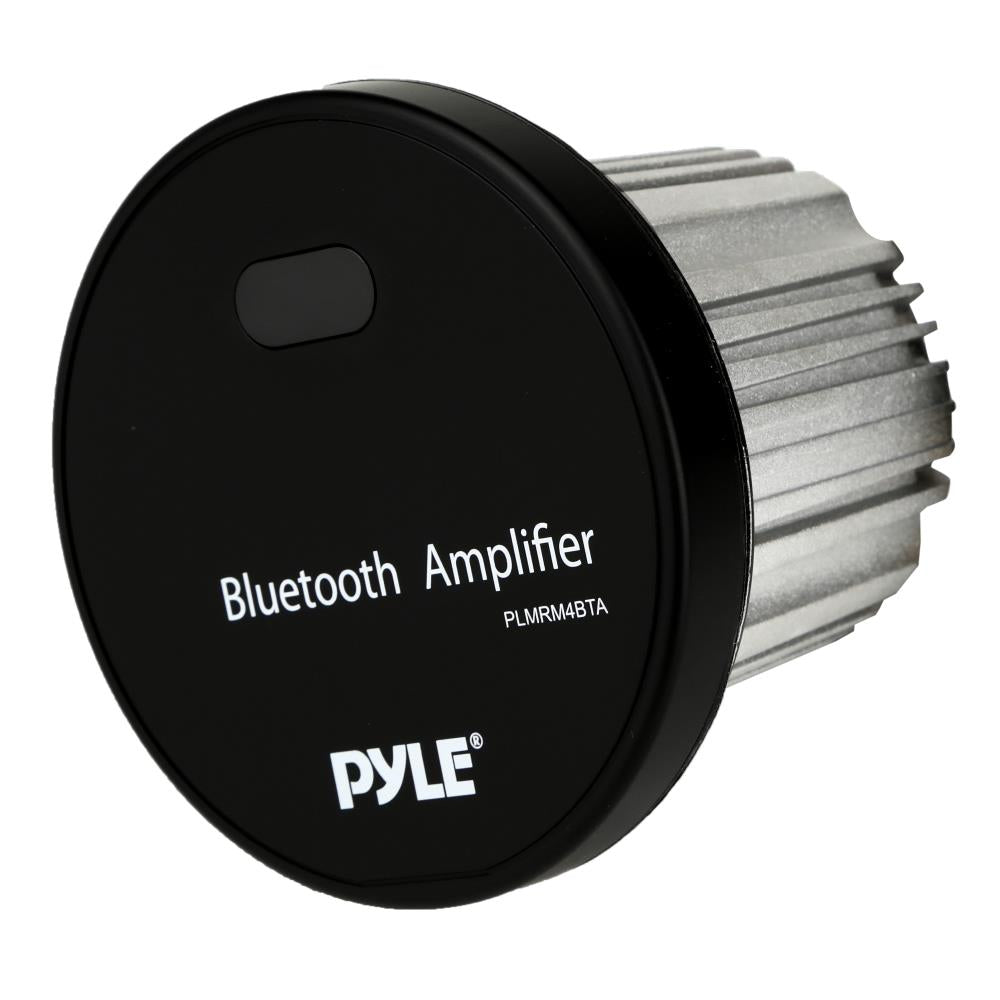

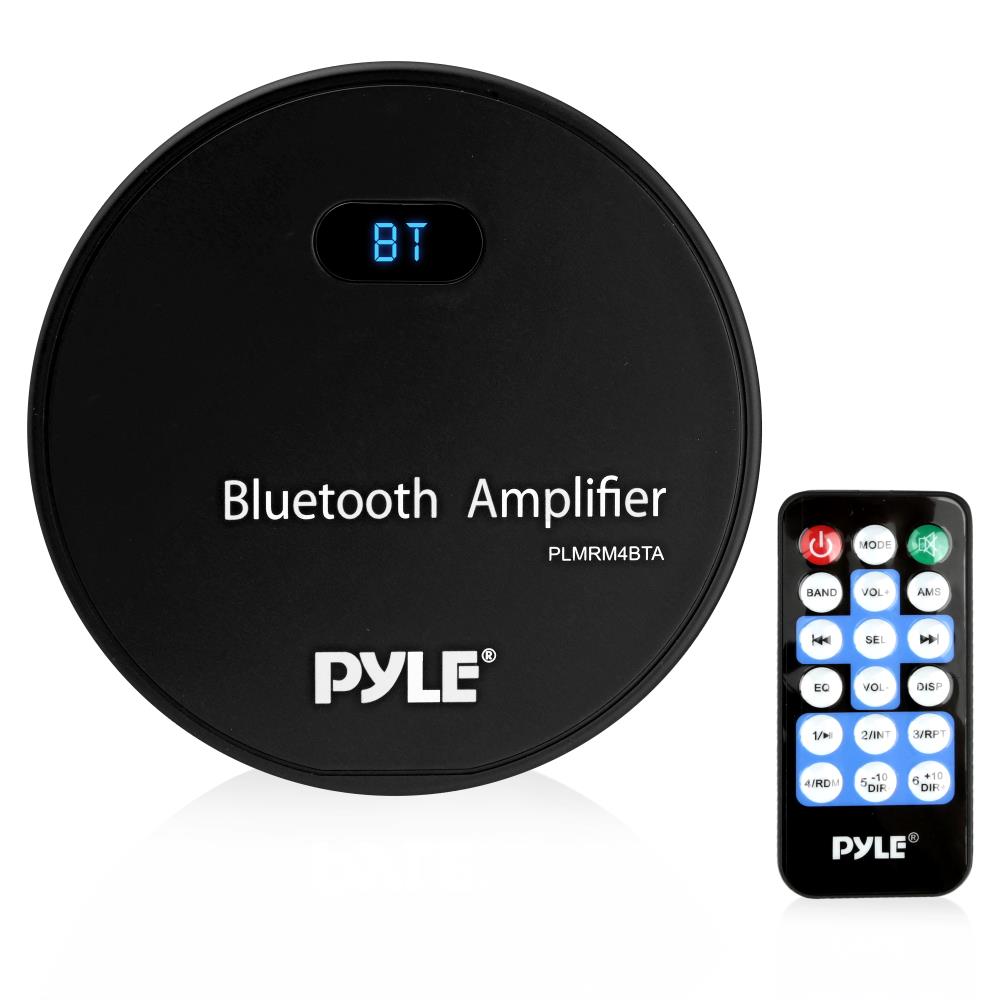

- Bluetooth Amplifier Receiver

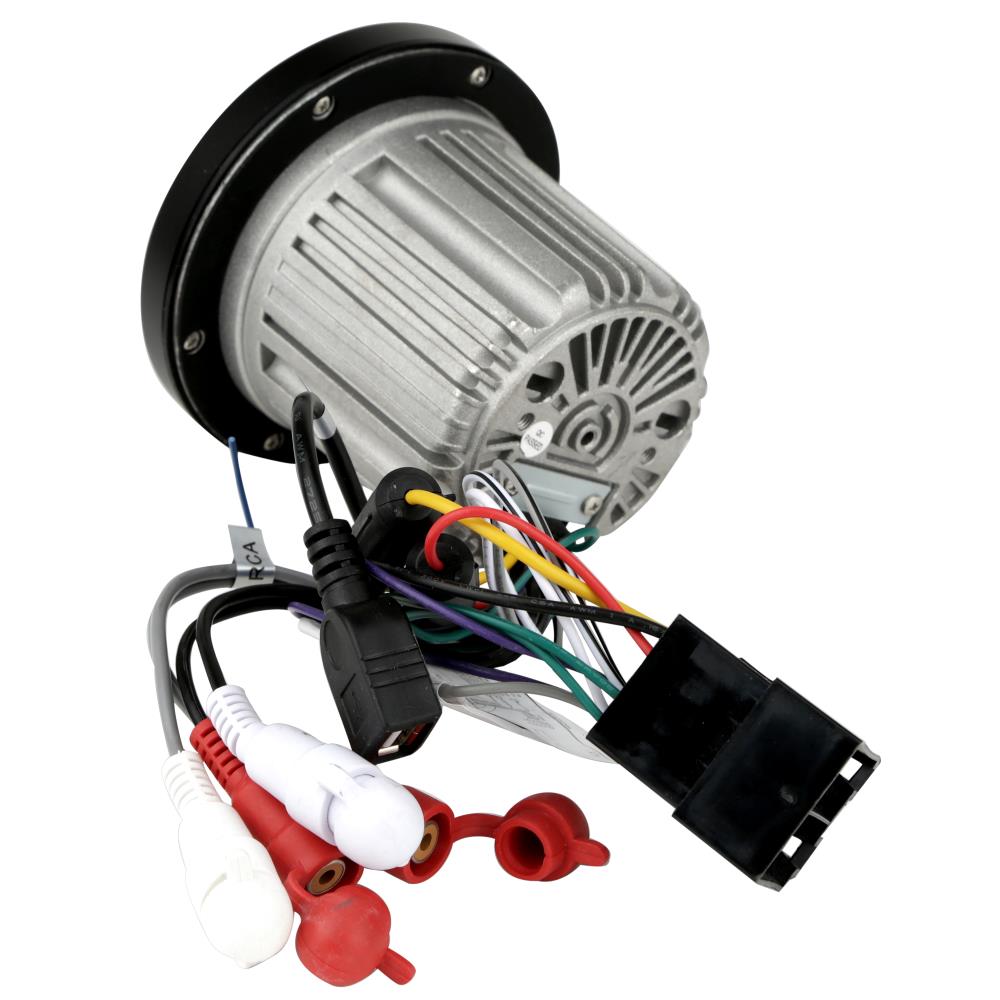

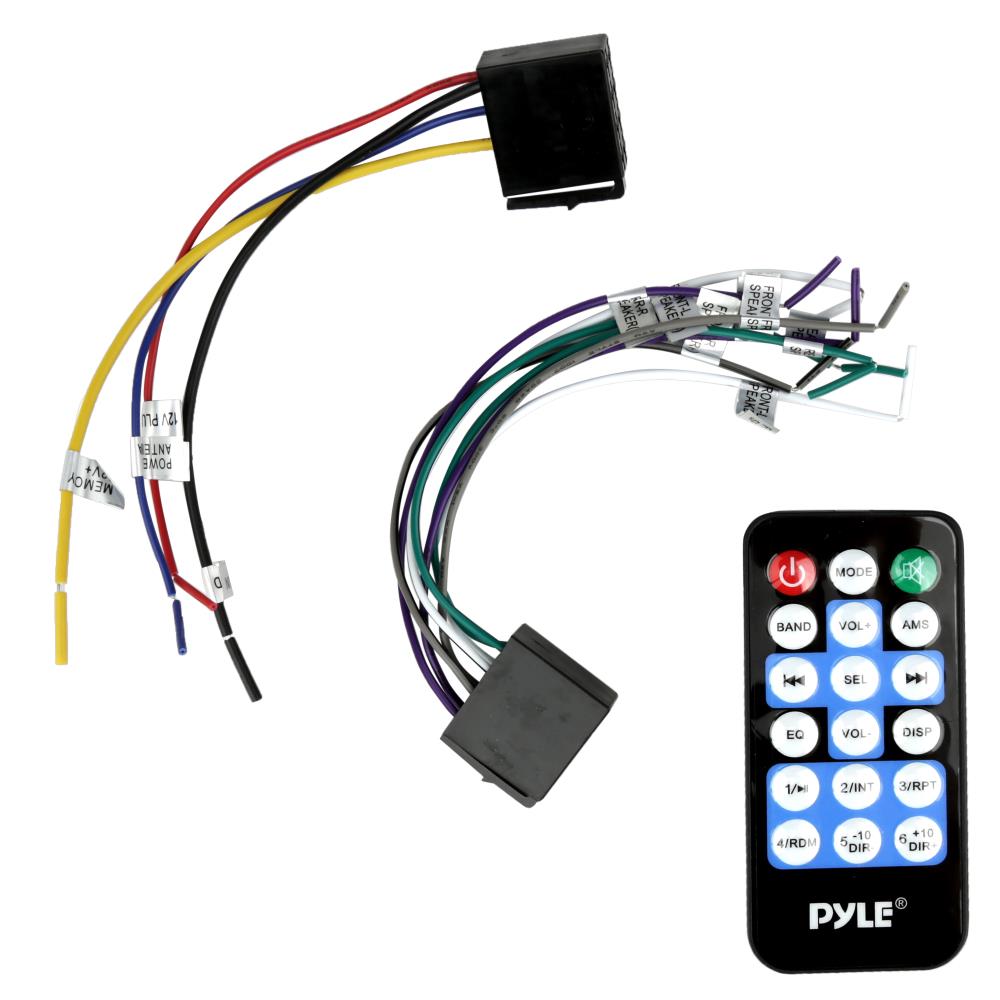

- Power & Wiring Harnesses
- Remote Control
Technical Specs:
- Power Output: 4 x 50 Watt (200 Watt MAX)
- Marine Grade Rating: IP-X5
- Frequency Response: 20Hz-20kHz (+/-3dB)
- Impedance: 4 Ohm
- S/N Ratio: 55dB
- Stereo Separation: >30dB, @ 1kHz
- Tone Control: Bass/Treble +/-10dB
- Maximum USB Flash Support: 32GB
- Digital Audio File Support: MP3/WMA
- Power: DC 12V
- Current Drain/Power Consumption: 10 Amp (Max.)
- Total Front Face Diameter: 4.0’’ -inches
- Cutout Diameter: 3.1’’ -inches
- Chassis Mounting Depth: 2.9’’ -inches
What's In The Box
MANUALS & DOWNLOADS
Questions & Answers
QUESTIONS & ANSWERS
Ask a Question-
I need a replacement remote
Please do not hesitate in contacting us through our email support system. Simply Go to toppyleusabargains.com click on the CONNECT tab then on the drop-down choose Contact Us. Fill out the form and in the last part, you will have an option to write your Subject and also on the comment box you can write your concern about the product. Please allow at least 12 to 24 hours for someone to get back with you. You can also contact our support hotline at 718-535-1800 ext 2 during weekdays from 9 am to 6 pm EST.
For Parts Request Please Complete the information below:
Full Name:
Email Address:
Contact Number:
Model Number:
Shipping address:
Requesting Part: -
I just finished installation. 1. How do I adjust: treble/bass ; right/left balance; front/back fade. 2. Is there an app for control or is the only control the faceplate and remote.
For the PLMRMBT5 / PLMRMBT5A-style marine amp units, here’s how it actually works:
1) Bass / Treble / Balance / Fade adjustment
This unit does NOT have a full digital menu EQ like a car stereo head unit.
Instead:
- Bass/Treble → controlled by your source device (phone, head unit, etc.)
- The amplifier itself only has GAIN + input mode + polarity switch
- It does not provide true left/right balance or front/rear fade control
So if you’re looking for:
- Treble adjustment → not on the amp
- Bass adjustment → not on the amp
- Balance / fade → not on the amp
Those must be done on whatever is feeding audio into it (radio, phone, mixer, etc.)
2) App control?
No — there is:
- ❌ No app
- ❌ No Bluetooth control app
- ❌ No EQ app integration
- ❌ No WiFi control
Control is only:
- Front/source device (EQ, volume, balance, fade)
- Amp hardware (gain + switches on the unit)
3) What is adjustable on the amp itself
On the actual unit you only get:
- Gain (overall volume level)
- Input level switch (line vs speaker level)
- Polarity switch (bass phase tuning)
That’s it.
Simple takeaway
If you want bass, treble, balance, and fade control, it must come from your head unit or phone, not the PLMRMBT5.
-
Will this unit work without the remote control? I am placing it on a rental boat and need the ability to connect Bluetooth phone to it without the remote
Yes, the Pyle PLMRM4BTA can work without the remote control.
-
Can you bridge the 4x50w to 2x100w if so what wires would you connect together
This unit is not bridgeable
